Zenmuse P1
Benchmark for Aerial Photogrammetry: Ultra-High Precision Full-Frame Vision

DJI
Zenmuse P1
Benchmark for Aerial Photogrammetry: Ultra-High Precision Full-Frame Vision
- Sensor Type
- 45 MP Full-Frame CMOS
- Accuracy
- 3 cm Horizontal / 5 cm Vertical (Without GCPs)
- Shutter
- Mechanical Shutter (1/2000 s)
- Lenses Supported
- 24mm, 35mm, 50mm DL Lenses
Technical data
Product information

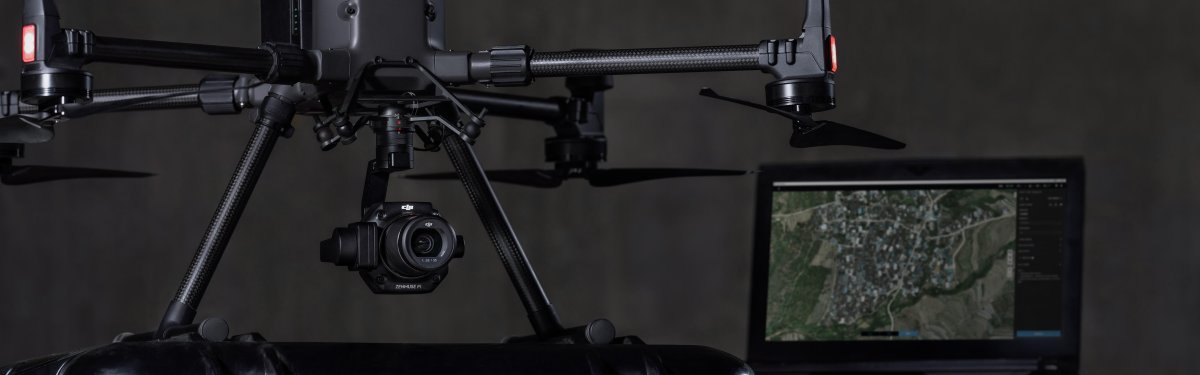

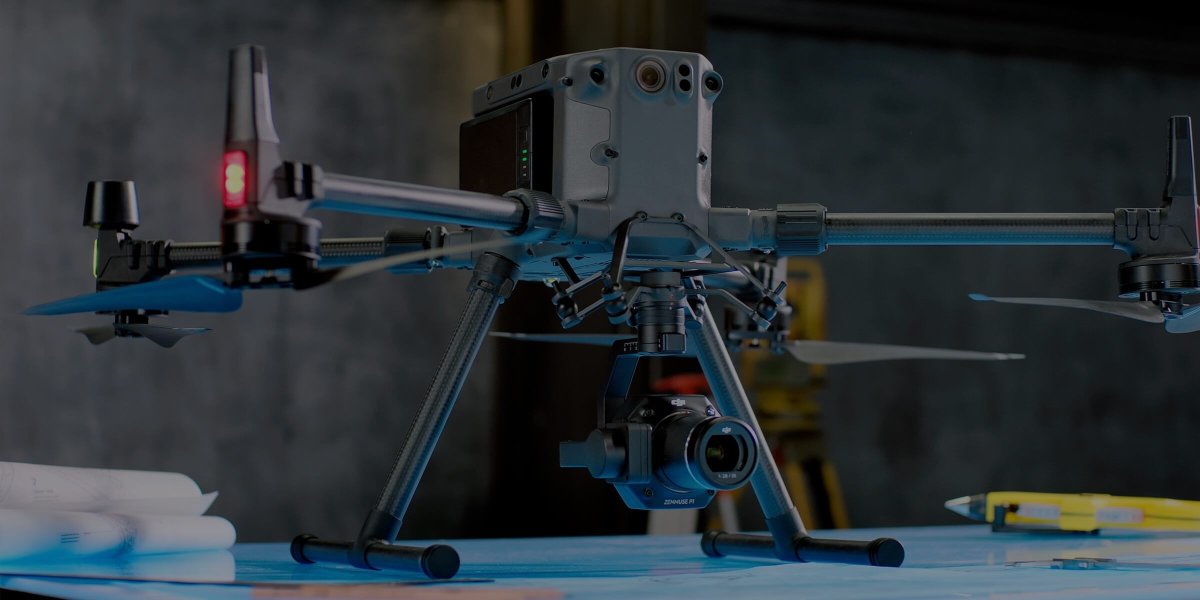

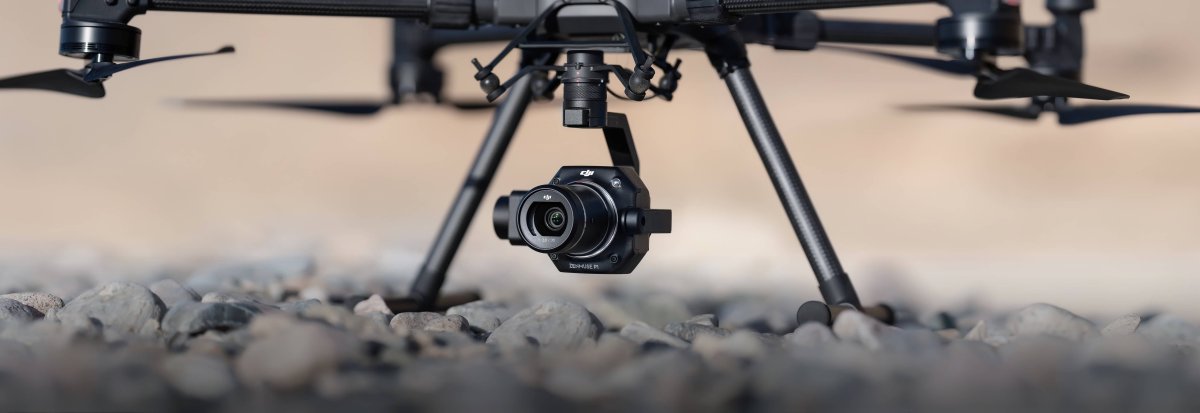

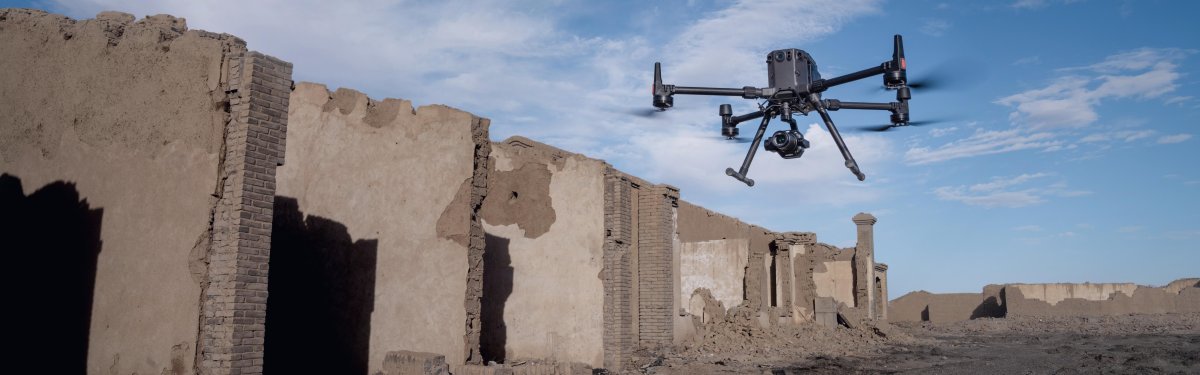

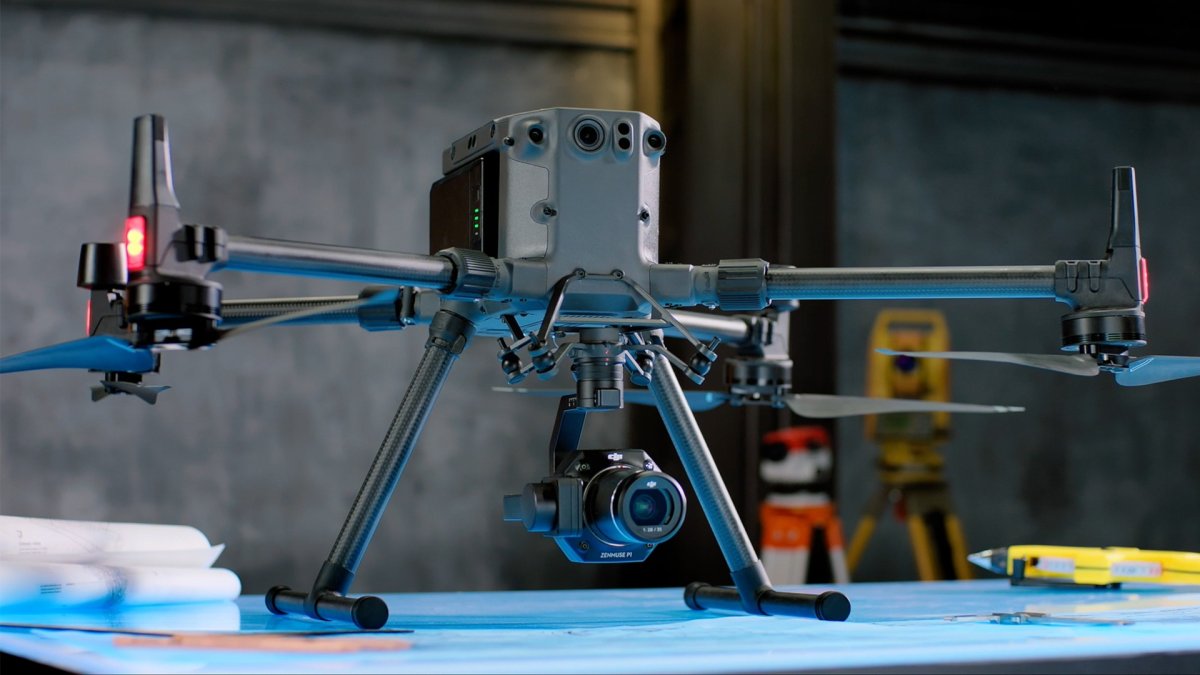

The Zenmuse P1 integrates a full-frame 45 MP sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to an entirely new level, providing high-precision geospatial data without ground control points (GCPs).
Key Highlights:
-
45 MP Full-Frame Sensor: Delivers extraordinarily detailed aerial photos with low noise and high dynamic range for large-scale photogrammetry mapping.
-
Centimeter-Level Accuracy: Achieves high vertical and horizontal mapping precision even without ground control points, integrated with TimeSync 2.0.
-
Smart Oblique Capture: Automatically rotates the gimbal to capture photos at different angles during flight, drastically increasing 3D modeling efficiency.
-
High-Speed Mechanical Shutter: Prevents motion blur during high-speed aerial mapping with a shutter speed up to 1/2000 second.
-
Interchangeable DL Lenses: Supports DJI DL 24mm, 35mm, and 50mm lenses to adapt to different survey distances and project requirements.
| Product Name | ZENMUSE P1 |
|---|---|
| Dimensions | 198×166×129 mm |
| Weight | Approx. 800 g |
| Power | 20W |
| IP Rating | IP4X |
| Supported Aircraft | Matrice 300 RTK, Matrice 350 RTK, and Matrice 400 |
| Operating Temperature Range | -20° to 50° C (-4° to 122° F) |
| Storage Temperature Range | -20° to 60° C (-4° to 140° F) |
| Absolute Accuracy | Horizontal: 3 cm, Vertical: 5 cm * * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate. |
