Zenmuse H20 Series
Unleash the Power of Visual & Thermal Intelligence.
DJI
Zenmuse H20 Series
Unleash the Power of Visual & Thermal Intelligence.
- Optical Zoom
- 23x Optical Zoom (200x Max)
- Thermal Camera (H20T)
- 640 × 512 Thermal Imaging
- Laser Rangefinder
- Range: 3 m to 1,200 m
- Protection
- IP44 Weatherproof
Technical data
Product information

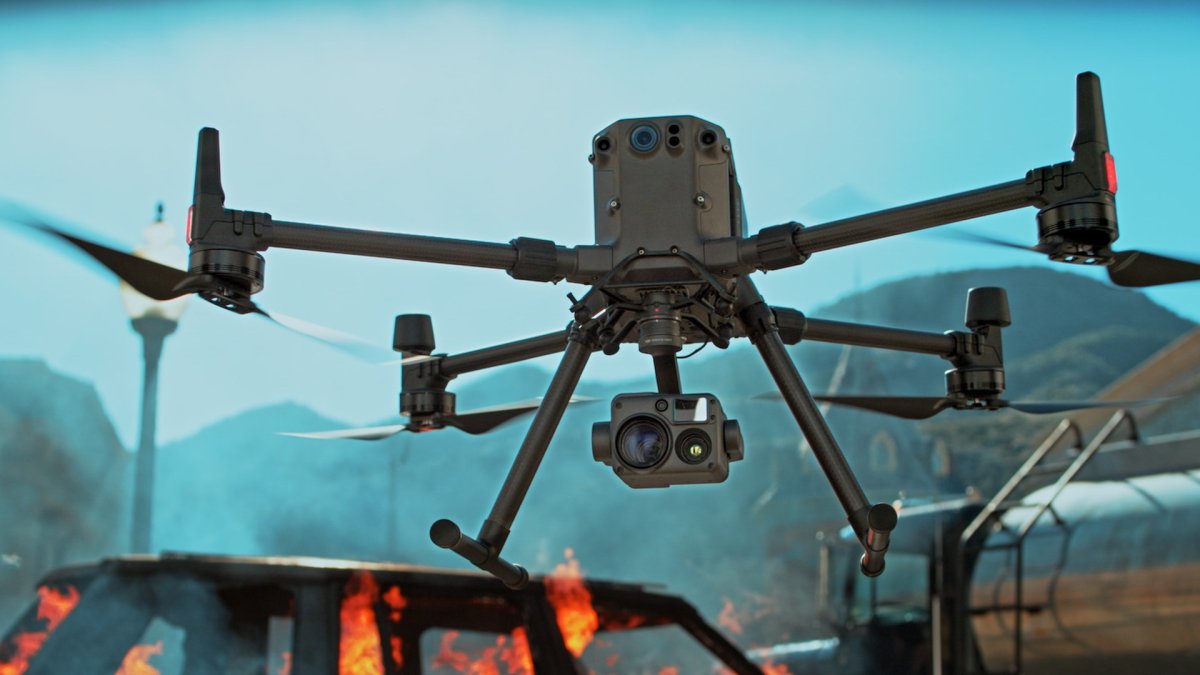

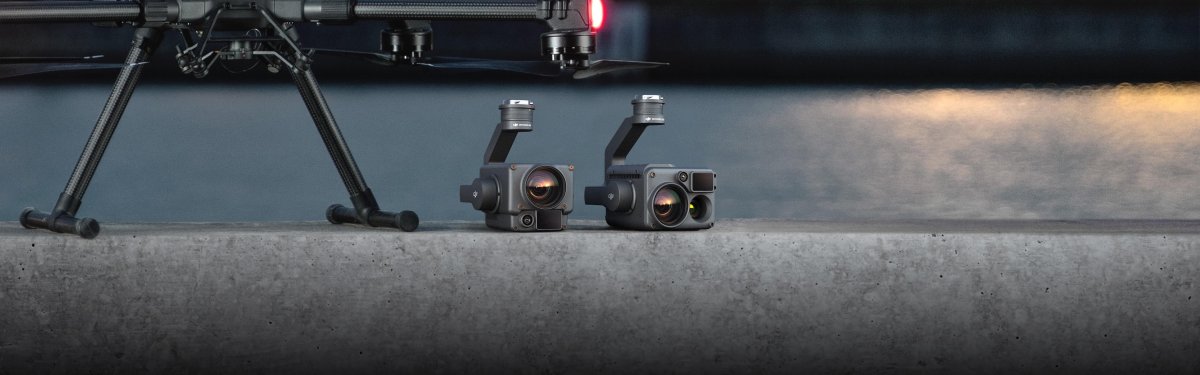

The Zenmuse H20 Series (H20 & H20T) represents DJI’s first hybrid multi-sensor solution engineered specifically for industrial applications and enterprise missions. Integrating a zoom camera, wide camera, laser rangefinder, and radiometric thermal camera (H20T model), it provides unprecedented aerial intelligence across diverse operational environments.
Key Highlights:
-

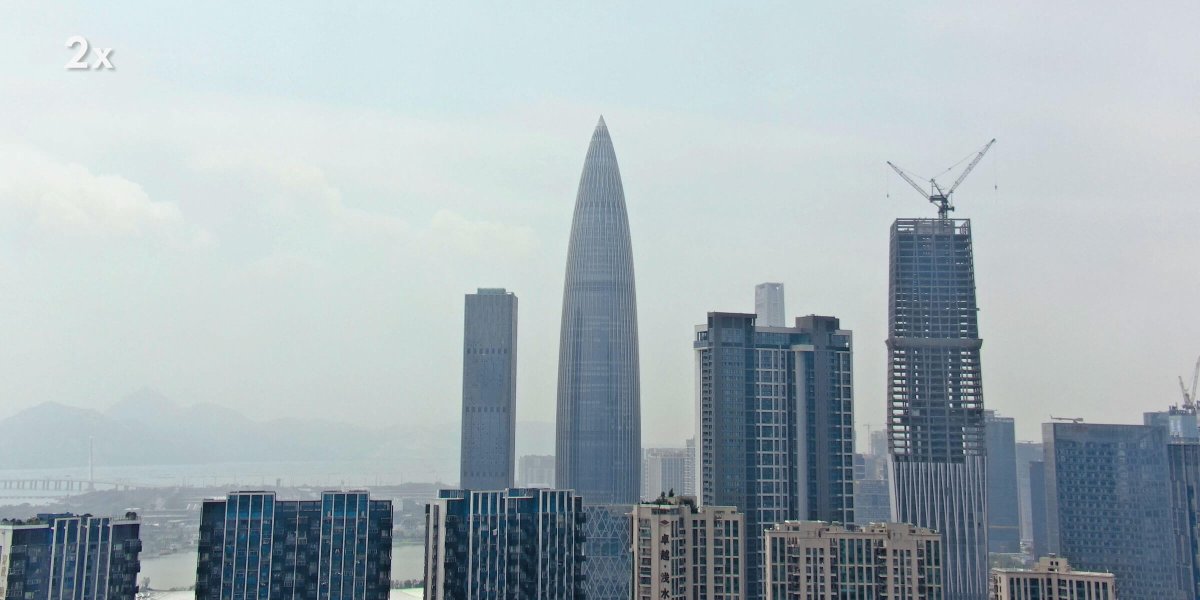

23x Optical Hybrid Zoom: Captures high-resolution detail from safe standoff distances with a 20 MP zoom camera capable of up to 200x maximum zoom.
-

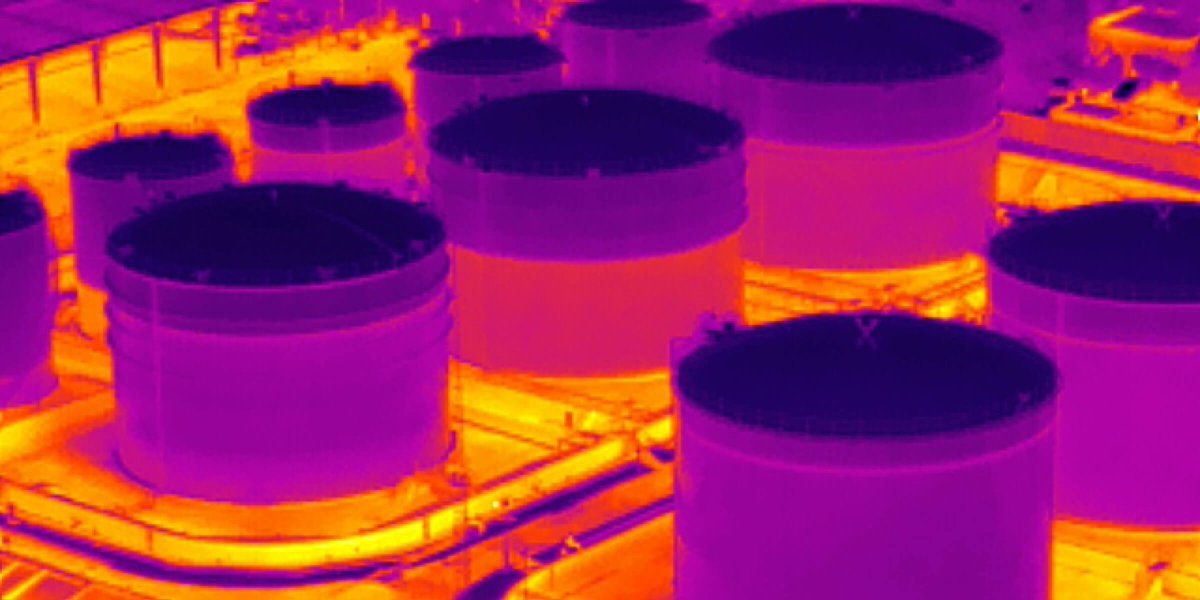

Radiometric Thermal Imaging (H20T): Features a 640×512 thermal sensor capable of real-time temperature monitoring, spot measurements, and area temperature alerts.
-
Integrated Laser Rangefinder: Accurately measures targets and precise GPS coordinates from 3 meters up to 1,200 meters.
-

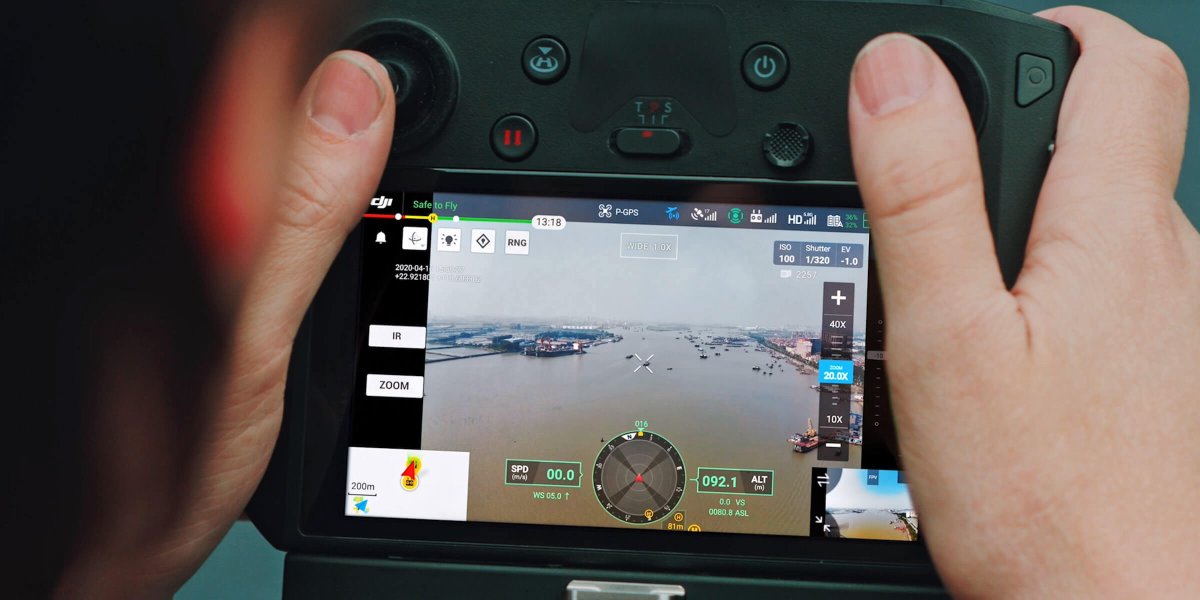

Seamless Multi-Sensor Control: Easily switch between thermal, zoom, and wide-angle views, or view them side-by-side with synchronized split-screen zoom.
-
Rugged Enterprise Build: IP44 rated for all-weather operational readiness in temperatures ranging from -20°C to 50°C.
| Weight | Zenmuse H20: 678±5 g Zenmuse H20T: 828±5 g |
|---|---|
| Dimensions | Zenmuse H20: 150×114×151 mm Zenmuse H20T: 167×135×161 mm |
| Ingress Protection Rating | IP44 |
| Operating Temperature | -20° to 50° C (Temperature Measurement is only available between -10° to 50° C) |
| Storage Temperature | -20° to 60° C |
| Laser Safety | Class 1M (IEC 60825-1:2014) |

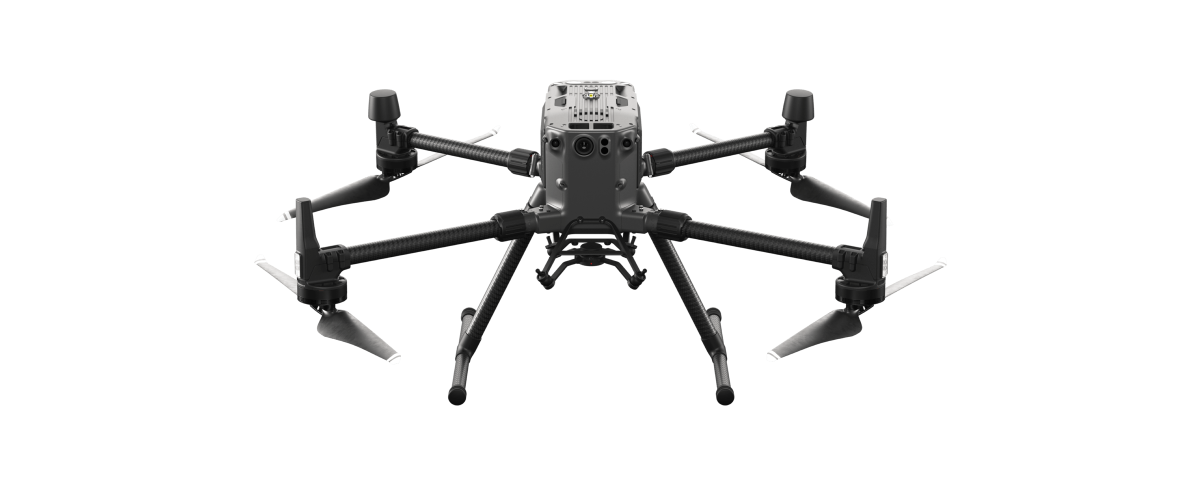

| Supported Aircraft | Matrice 300 RTK |
