DJI Dock
For the Road Less Traveled: Unattended Autonomous Drone Flights

DJI
DJI Dock
For the Road Less Traveled: Unattended Autonomous Drone Flights
- Max Operating Radius
- Up to 7 km
- Fast Charging
- 10% to 90% in 25 mins
- Protection Rating
- IP55 Weatherproof
- Operating Temp
- -35°C to 50°C
Technical data
Product information

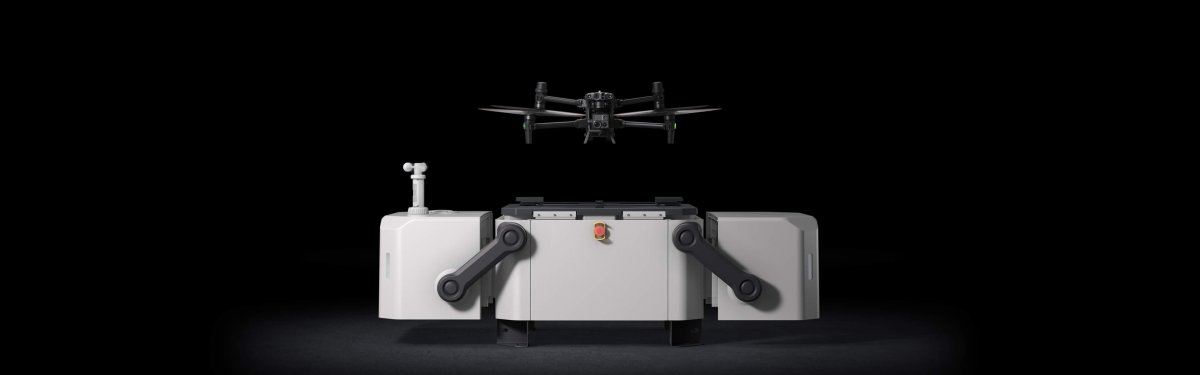

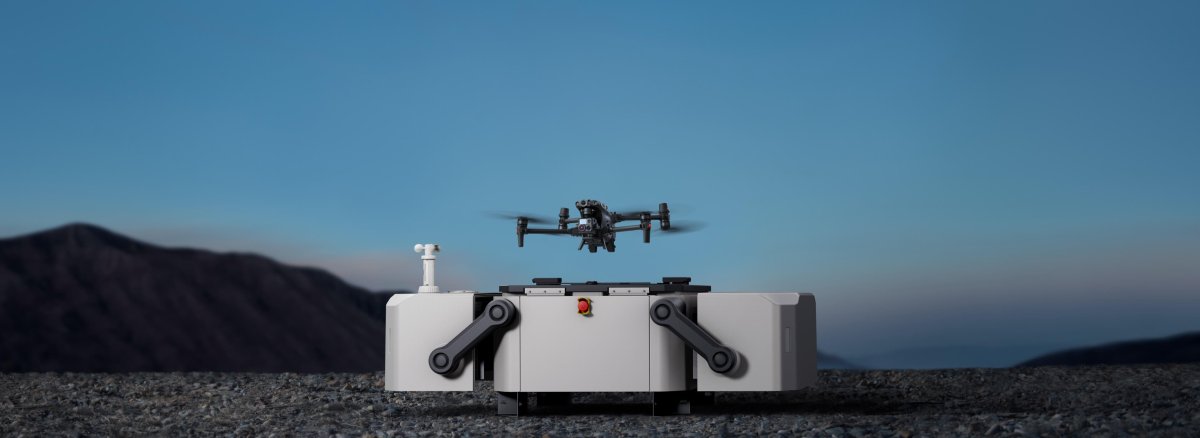

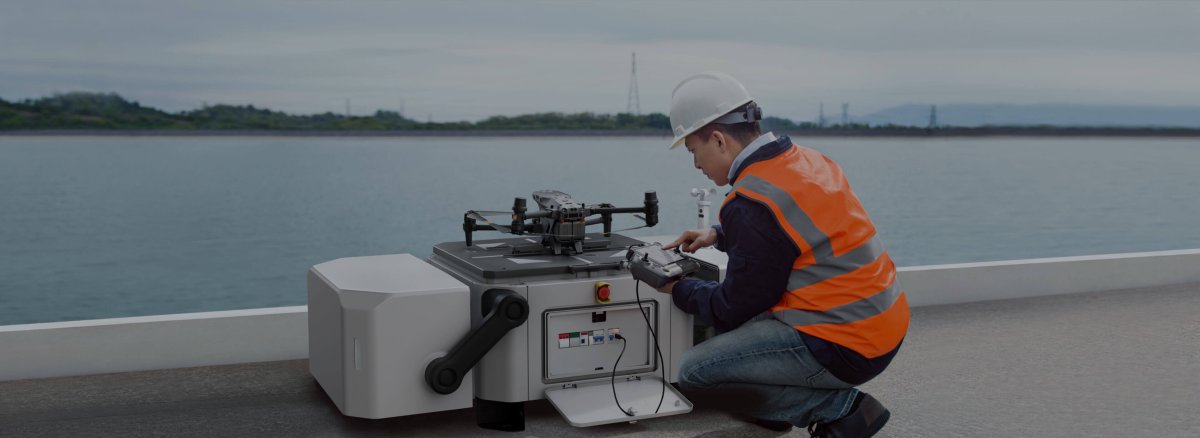

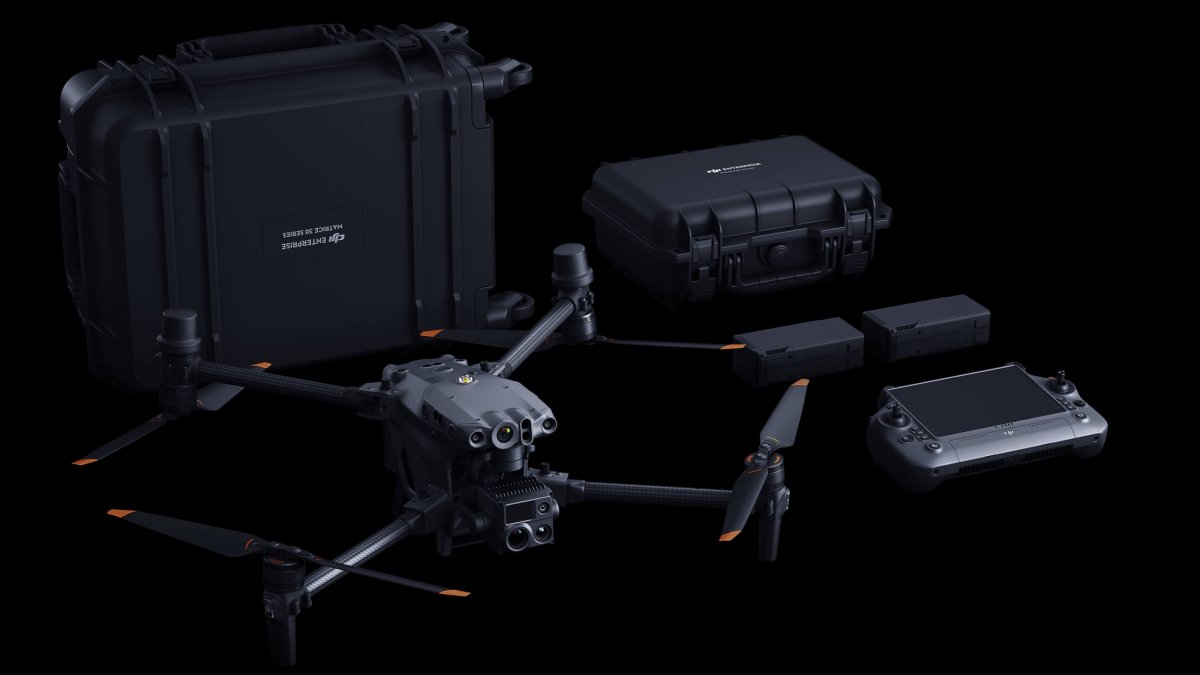

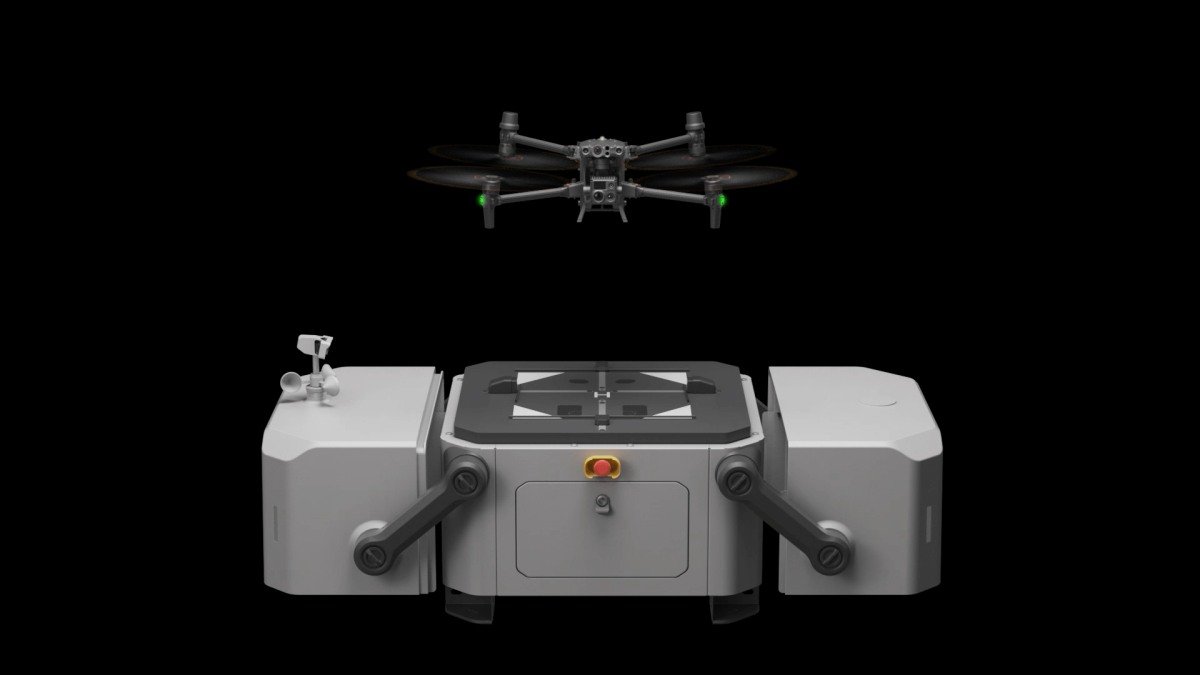

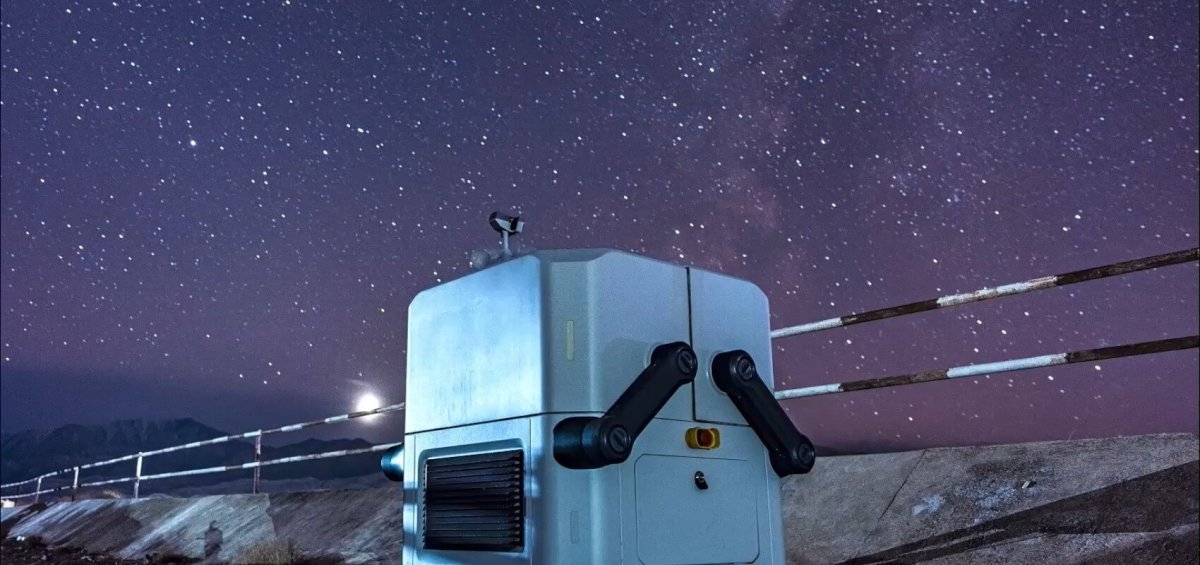

The DJI Dock is an autonomous outdoor drone docking station designed to host, charge, and launch drones remotely, enabling 24/7 unattended operations. Built to endure harsh environments, it works with the DJI Matrice 30 Series (Dock Version) to deliver round-the-clock automated inspections, security surveillance, and mapping missions.
Key Highlights:
-

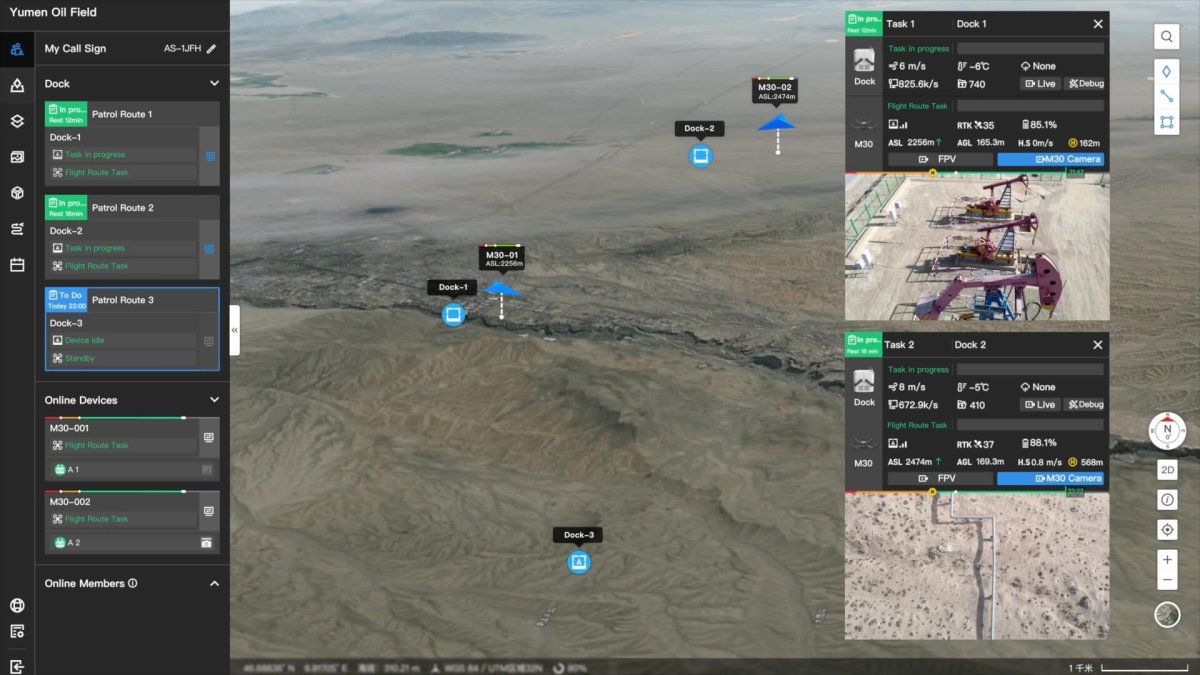

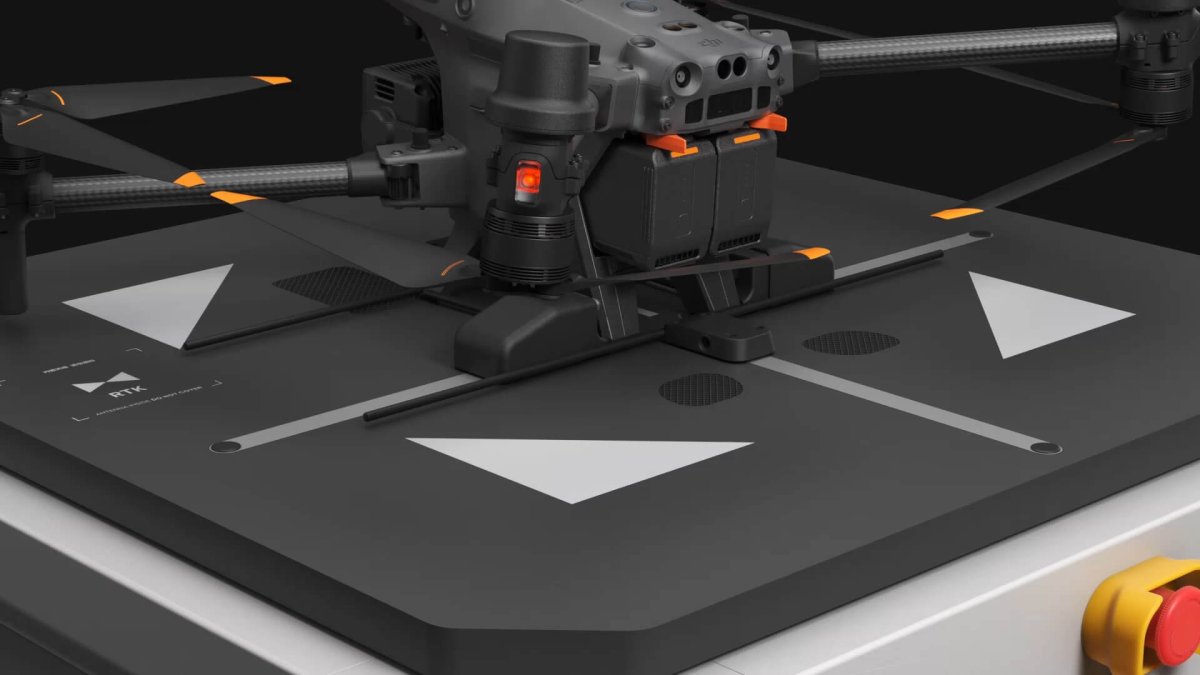

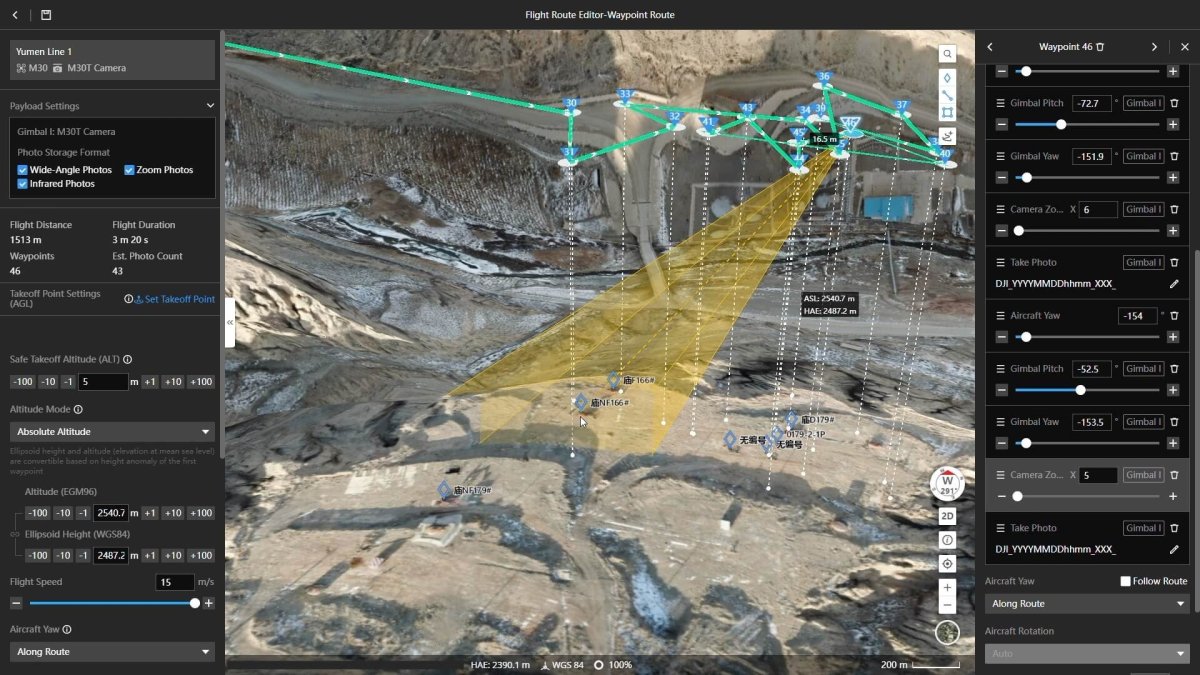

Fully Autonomous Deployment: Automates takeoff, precise RTK landing, data uploading, and rapid battery charging controlled remotely through DJI FlightHub 2.
-
Fast Charging Capacity: Fast-charges the drone battery from 10% to 90% in just 25 minutes, facilitating rapid turnarounds for frequent automated flights.
-

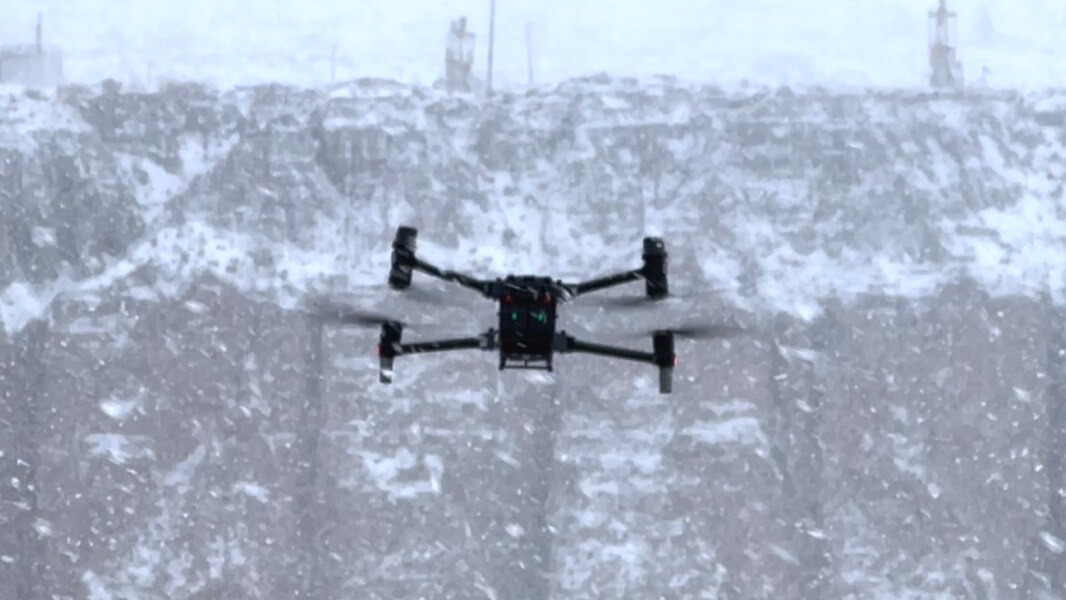

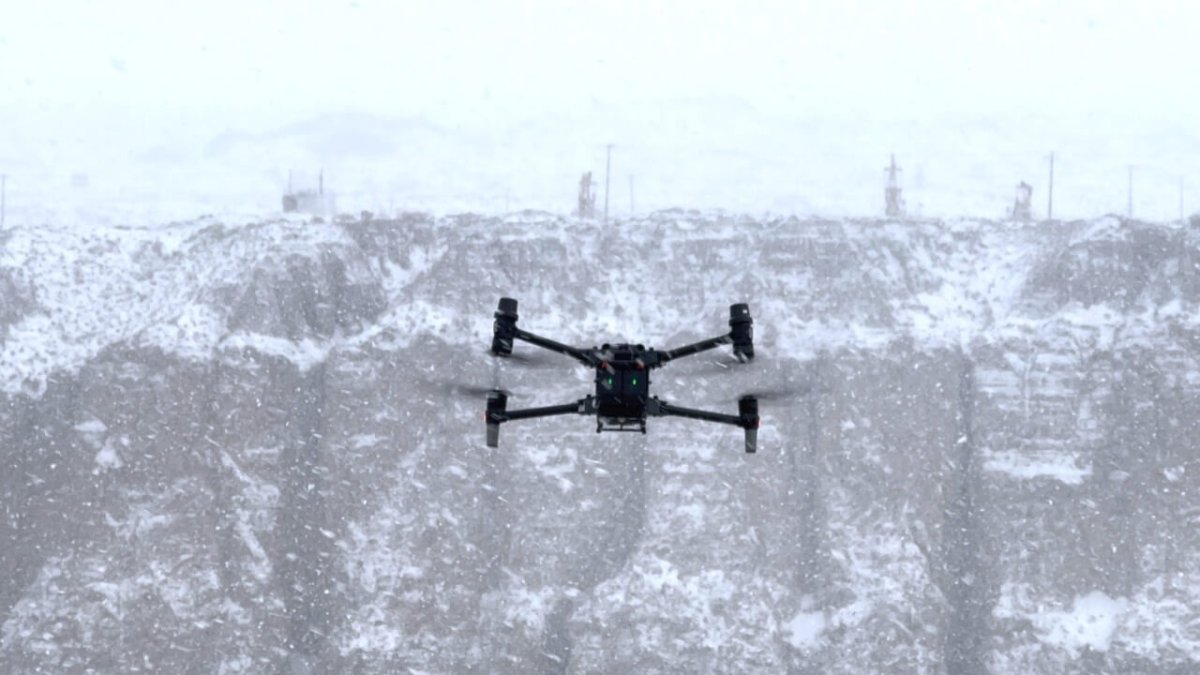

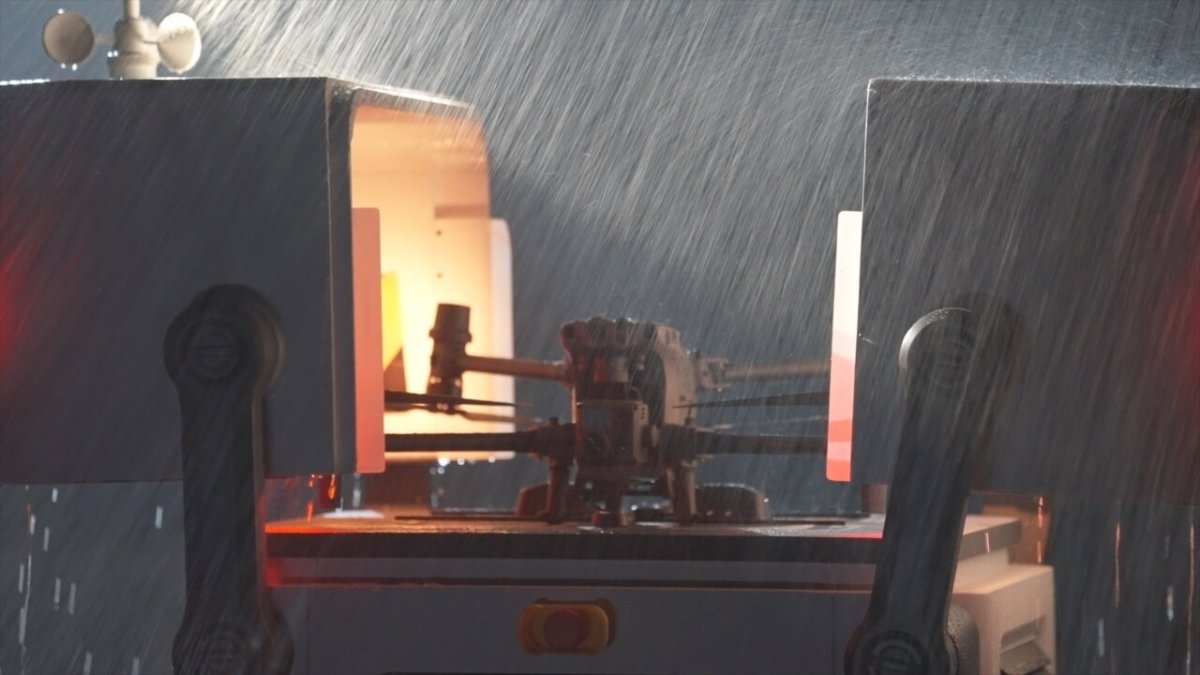

All-Weather Enterprise Design: Built with IP55 protection and an integrated climate control system, ensuring stable operation in extreme weather temperatures from -35°C to 50°C.
-

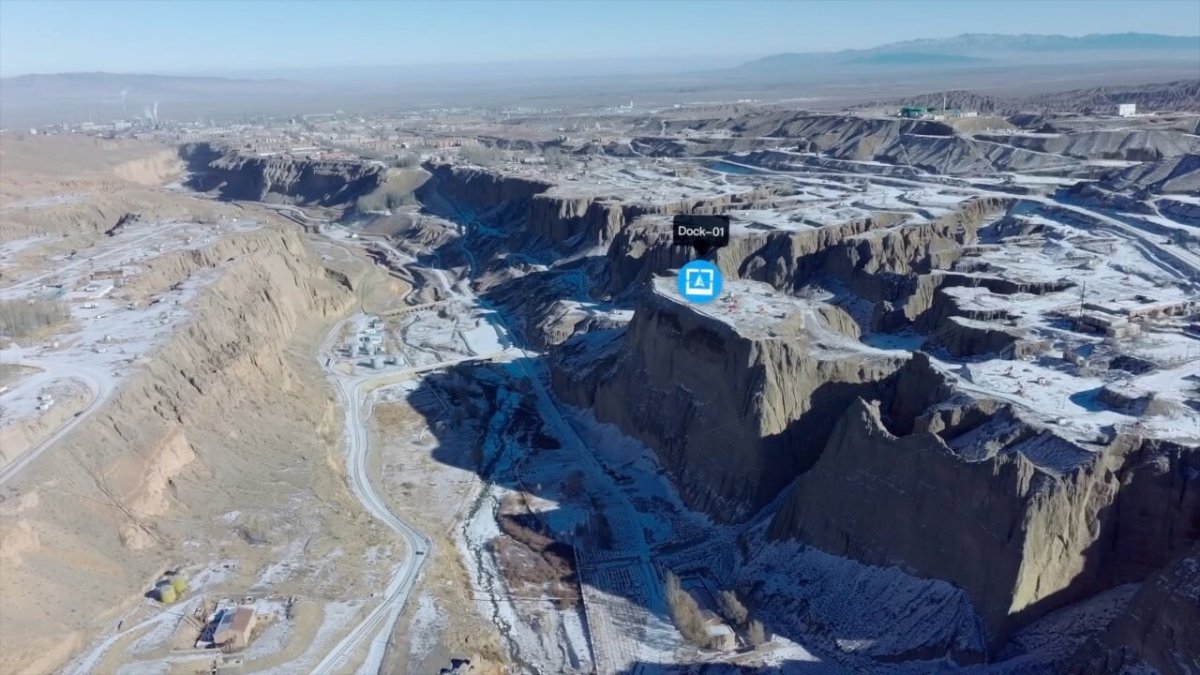

7 km Operational Cover: Covers an operational radius of up to 7 km with stable video transmission and precise flight route execution.
-

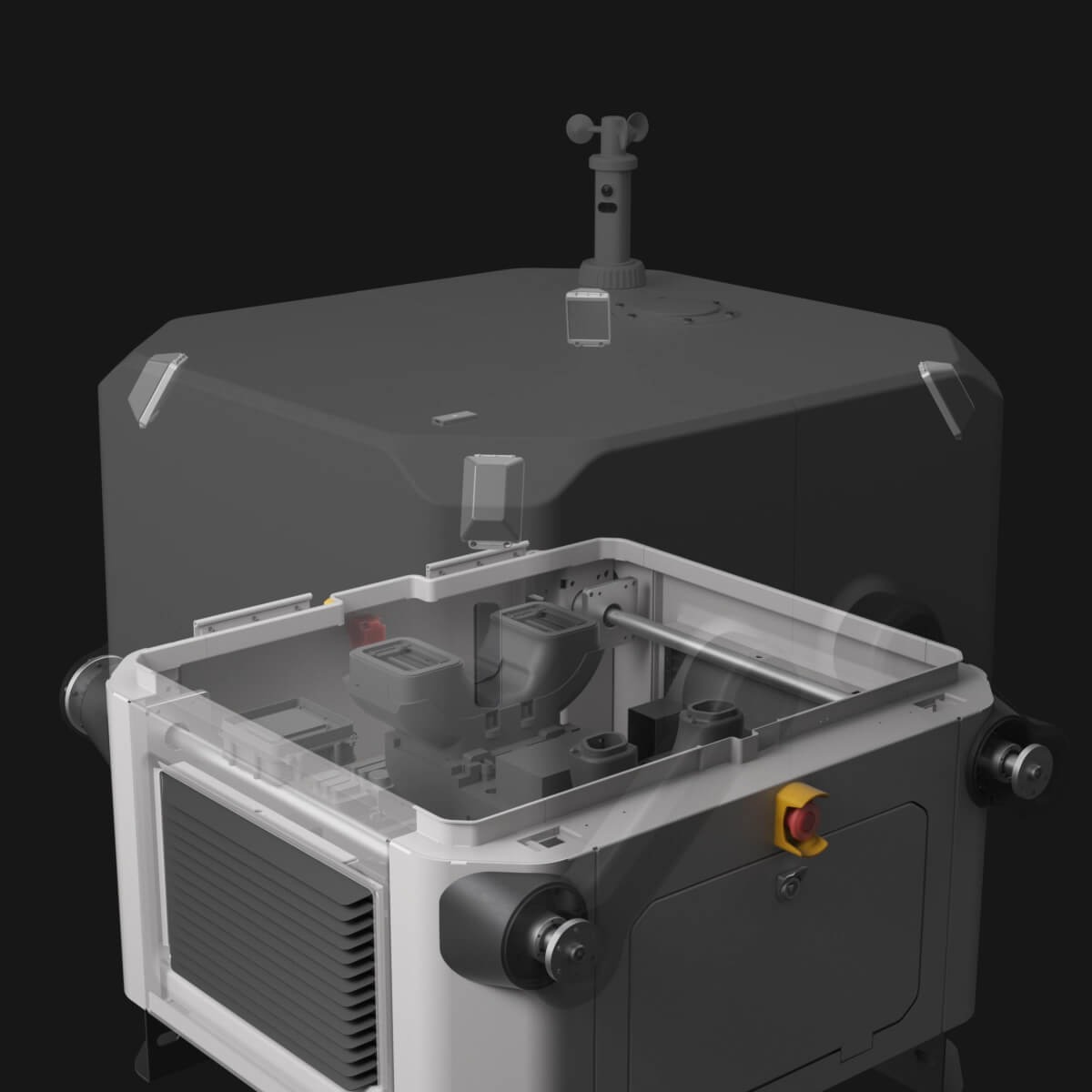

Integrated Hardware & Safety: Features an integrated weather station, internal security camera, surge protection, and a 5-hour backup battery system.
| Product Name | DJI Dock |
|---|---|
| Total Weight | 105 kg (not including aircraft weight) |

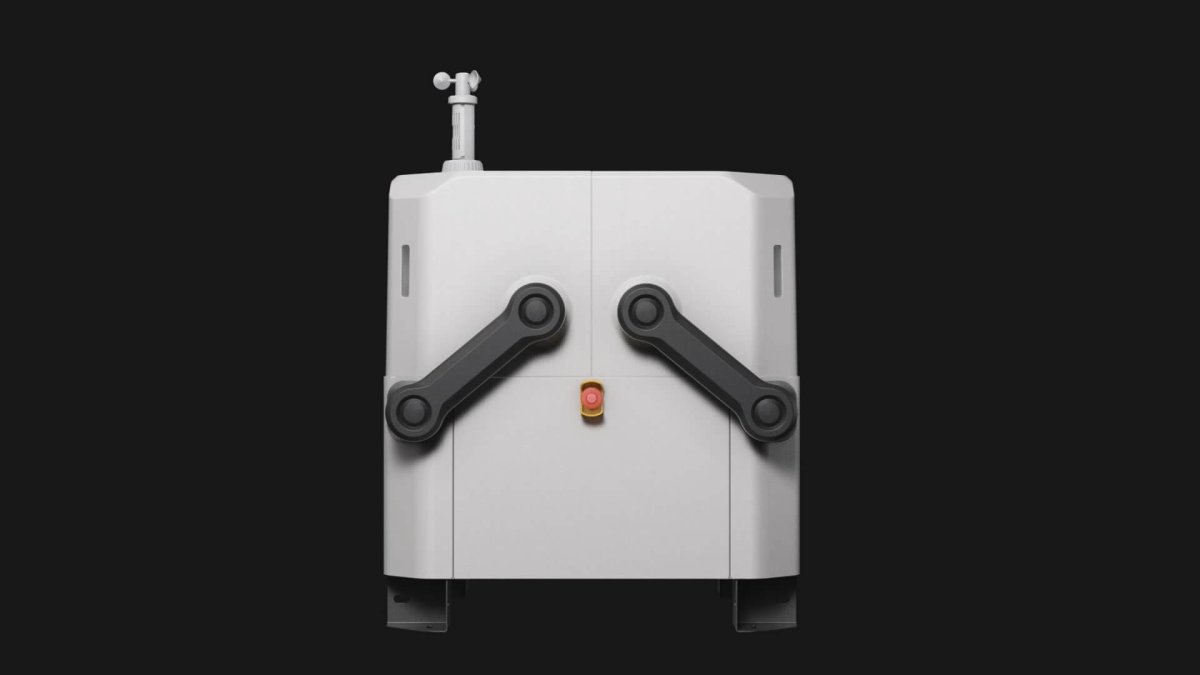

| Dimensions | Dock Cover Opened: 1675×885×735 mm (L×W×H) Dock Cover Closed: 800×885×1065 mm (L×W×H) |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Max Input Power | 1,500 W |
| Operating Temperature | -35 to 50° C (-31 to 122° F) |
| Ingress Protection Rating | IP55 |
| Number of Drones Accommodated | 1 |
| Max Allowable Landing Wind Speed | 12 m/s |
| Max Operating Altitude | 4,000 m |
| Max Operating Radius | 7,000 m |
| Receiving Frequency of RTK Base Station Satellite | Simultaneously receive: GPS: L1 C/A, L2 BeiDou2: B1l, B2l, B3l BeiDou3:B1l, B3l GLONASS:L1, L2 Galileo: E1, E5B |
| Positioning Accuracy of RTK Base Station | Horizontal: 1 cm+1 ppm (RMS) Vertical: 2 cm+1 ppm (RMS) |
